Strong Motion Accelerometer

Strong Motion Accelerometer
Strong Motion Accelerometer
Product Code : 147-01
Product Description

Model 147-01

Features:

  • State-of-the-Art Force-Balance
    Accelerometer
  • Low Noise
  • Sensitivity and Offset Stable Over Wide Temperature Range
  • Available in Uniaxial, Triaxial,
    and Borehole Models

Applications:

  • Free Field Reference
  • Building Arrays
  • Structural Monitoring
  • Site Response
  • Aftershock Studies

The REF TEK 147-01 Low Noise model provides excellent dynamic range useful when used with 24-bit digitizers like the REF TEK 130 Series. This accelerometer uses a state-of the-art force balance accelerometer which makes up for the mechanical characteristic limitations of conventional accelerometers. Using a force balance feedback sensor overcomes the shortcomings of nonlinear distortion and threshold of sensitivity of elastic measuring parts.

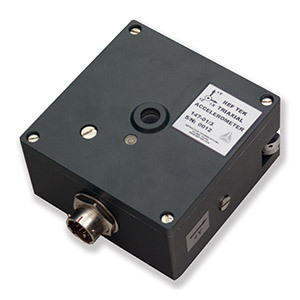

The 147-01/3 model shown here is +/- 4g full scale. The 147-01 high sensitivity, large linear range, high resolution, and high dynamic range make the 147-01 model best suited for free field applications such as microzonation, site response, earthquake monitoring, and more.

The 147-01 housing is sealed to meet IP67 standards for watertight integrity. Mounting is accomplished with a single bolt, 2 adjusting screws, and 3 point leveling.  The 147-01 is available in uniaxial, triaxial and borehole housing.
