High Resolution seismic Recorders

High Resolution seismic  Recorders
High Resolution seismic Recorders
Product Code : 130-01-small
Product Description
Third Generation Broadband Seismic Recorder
Model 130-01


  •     State-of-the-Art ADC for BB/SP Seismometers
  •     Small Size and Light Weight
  •     Modular Hardware and Software
  •     IP Communications over Ethernet and Asynchronous Serial
  •     Embedded/Removable Mass Storage


  •     Local and Regional
  •     Broadband
  •     Aftershock
  •     Active-Source
  •     Micro-Zonation Survey
  •     Site Noise Survey

Third Generation Broadband Seismic Recorder

The 130-01 Broadband Seismic Recorder digitizes and stores analog input from a variety of external sensors, including seismometers, accelerometers, tiltmeters and other geophysical sensors. The 130-01 is designed to be easier to use “more compact, lighter in weight, lower power, and requires less maintenance than other recorders. Not only is the hardware optimized for field deployments, software tools have been specially developed to support both field and base station operation.

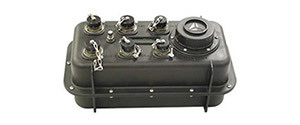

The 130-01 has six input/output connectors: two Channel input connectors, a Terminal connector for setup and control, a Net connector combining Ethernet and Serial PPP for network access, a 12 VDC Power connector, and a GPS receiver connector. An LCD display allows the user to monitor the status of various sub systems within the 130-01 without a terminal device attached.

The 130-01 case is a lightweight, waterproof, clamshell design. A removable lid is used for accessing the mass storage media and one or two Compact Flash II devices that are used for storing large amounts of data in the field. Also available is the Microdrive high capacity, high performance removable storage ranging up to 16GB on a one-inch hard disk drive or 32GB on two installed drives.

Setup, control, and status monitoring is accomplished with either an iPod touch or iPhone using our Field Setup Controller (iFSC) software or from a PC/workstation using our REF TEK Command Control (RTCC) GUI interface without a terminal device attached.

The 130-01 is low-power and operates from 12 volt power sources, making it ideal for portable deployment in a variety of environments where AC power is not available. Accessories include the REF TEK 130-GPS, compact flash drives, iPod touch, 130-ENVIROCASE, REF TEK 131B and 147 series accelerometers and REF TEK 151-series seismometers.
Alternative Model 130B-01

The 130B is a customized version of the 130 Broadband Seismic Recorder. The 130B is available in 3-channel configuration only, programmed with unity gain and has a different Internal Oscillator than in the 130-01 Recorder.
